Suin
Suin is a Birth Assist System (BAS) designed to make the experience of delivery less intimidating for mothers, ultimately improving birth outcomes. Developed with practical use cases in mind, SUIN aims to provide a safer, more human-centered approach to vacuum extraction in obstetric care.
Category:
Medical, Health, Maternity
Skills:
Rhino, Blender, Photoshop, 3D Printing
Date:
2024.10
BACKGROUND
INFORMATION

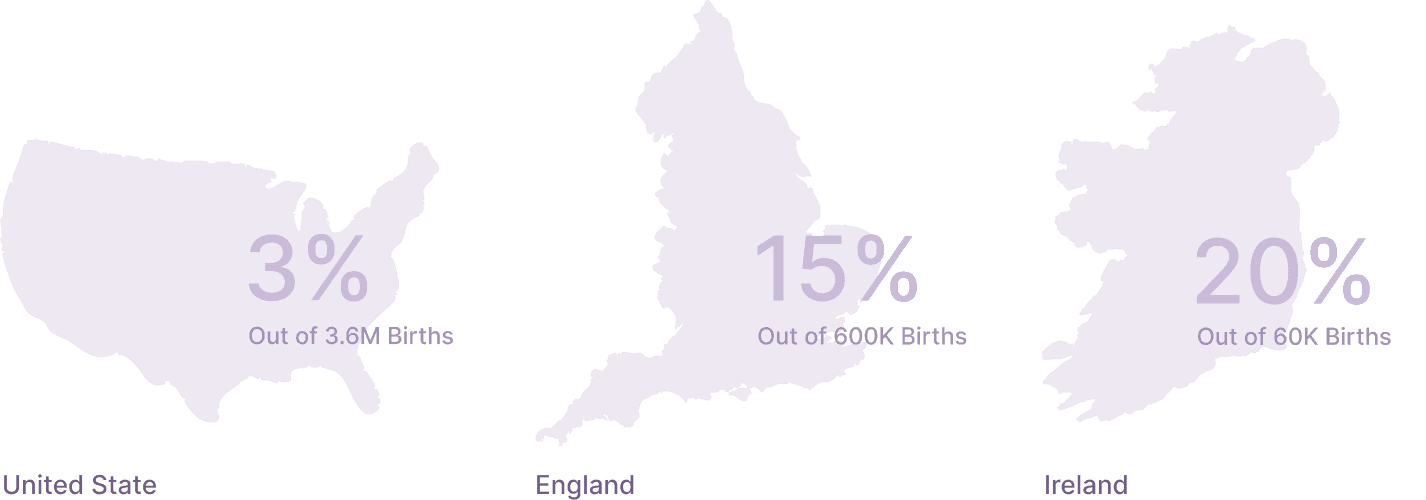

Percentage of Births Using Vacuum Extractor by Country
Vacuum extractors have changed little in seven decades, despite their critical role in modern obstetric medicine.

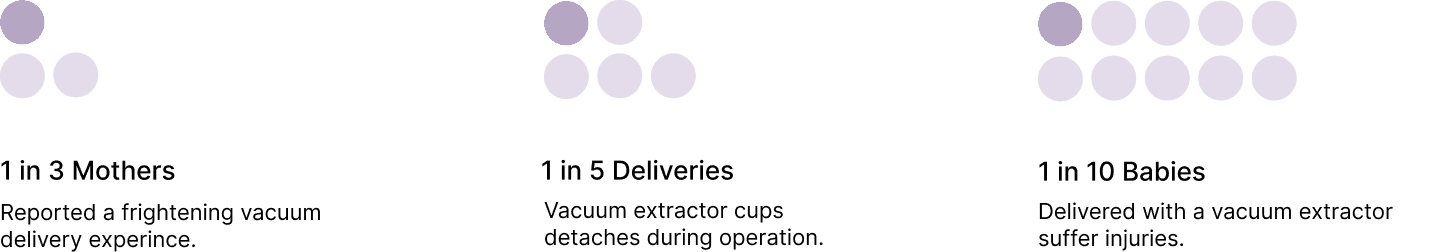

Their outdated, mechanistic design increases the risk of physical and psychological injury to mothers and neonates alike.
01 Problem
Frequent Suction Loss
Cups on vacuum extractors can lose grip mid-delivery, causing sudden pop-offs.
Solution

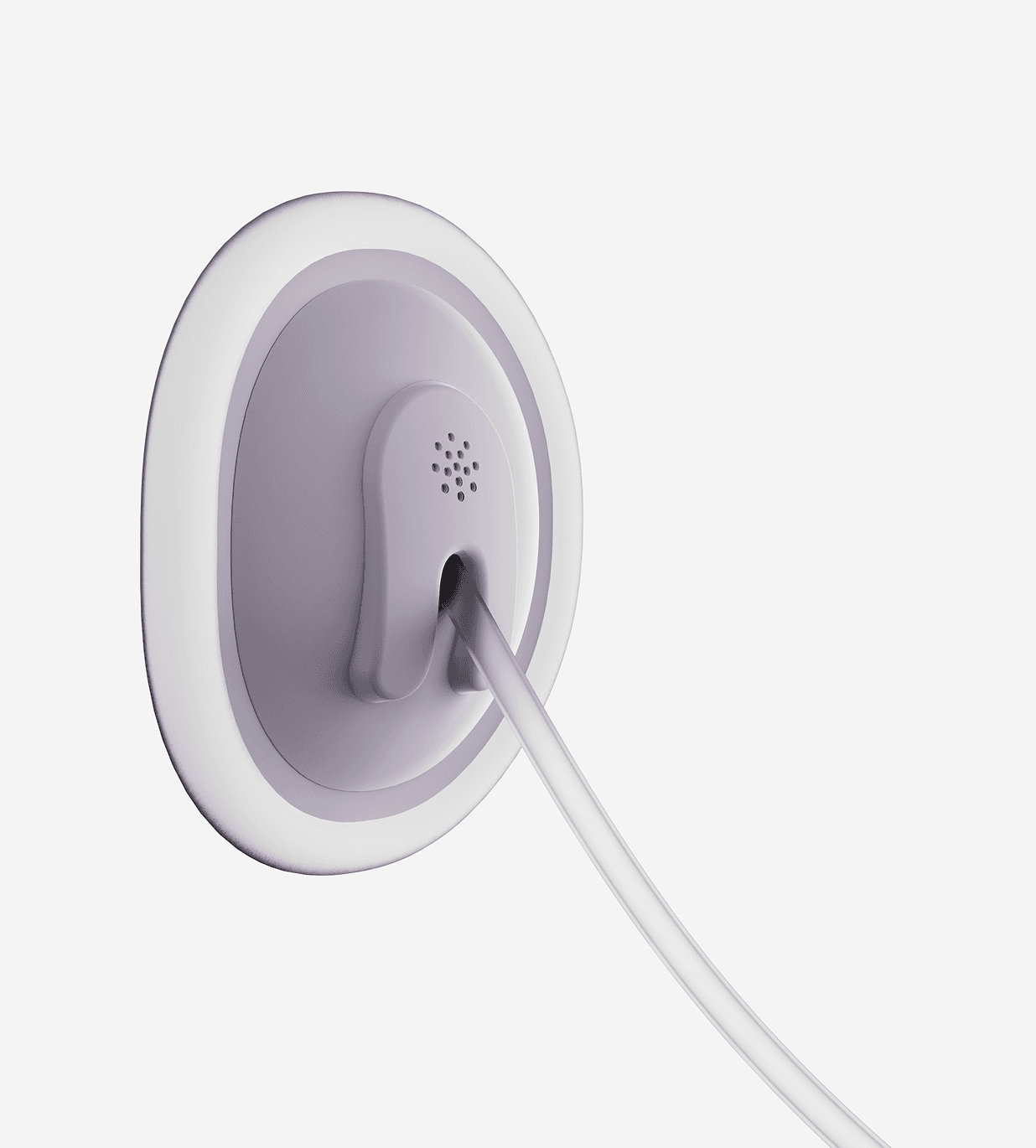

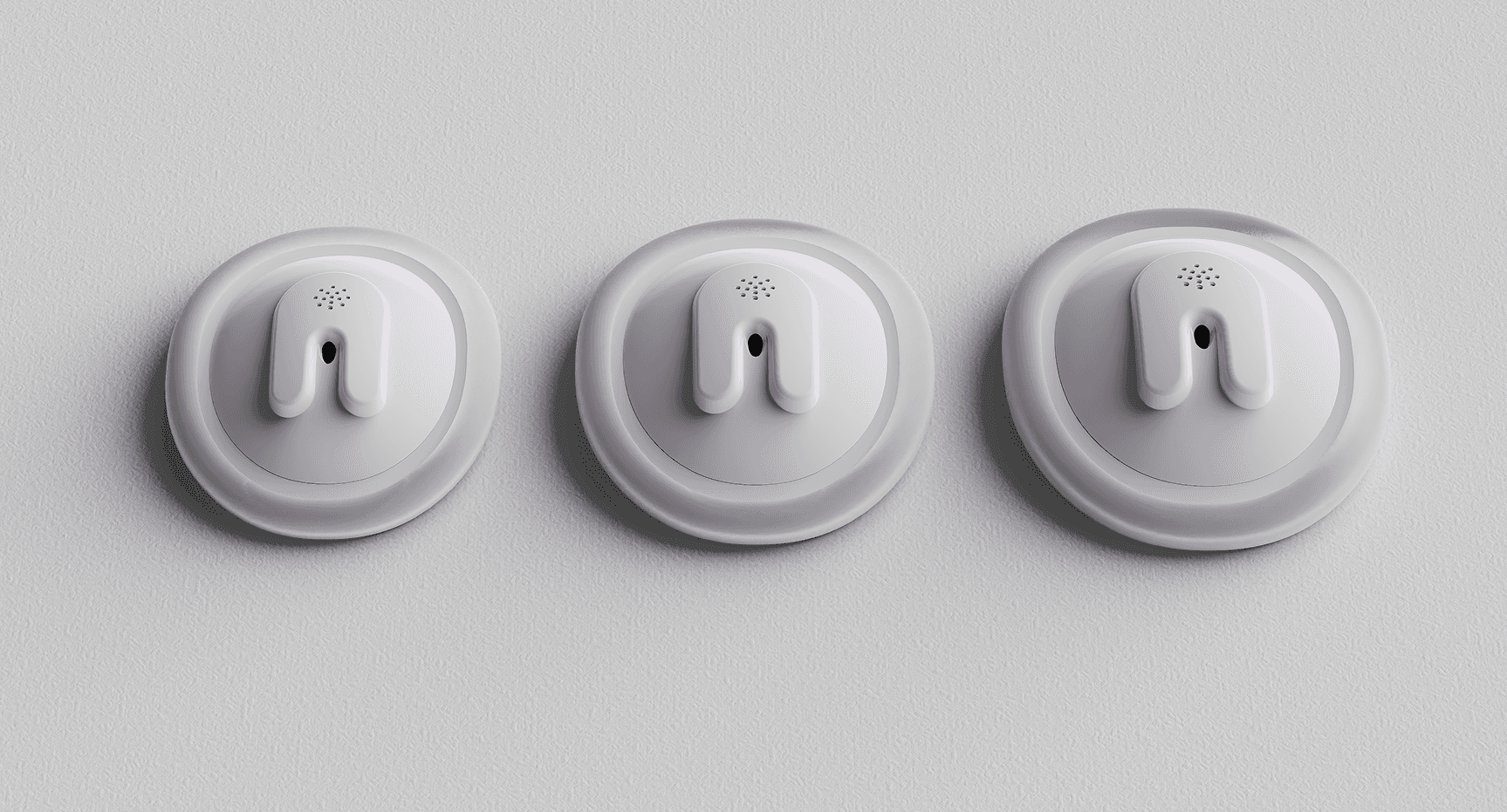

Adjustable Cup Sizes
Three cup sizes, designed with curved geometry, provide tighter fit for different head sizes.
01 Problem
Poor Handling
Slippery surfaces make it hard for doctors to control and place the cup accurately.
Solution
Improved Handling
A thin, pinch-style handle allows doctors to position the cup with precision.
02 Problem
Unclear Pressure Gauge
The pressure gauge is hard to read, forcing doctors to rely on rough estimations.
Solution

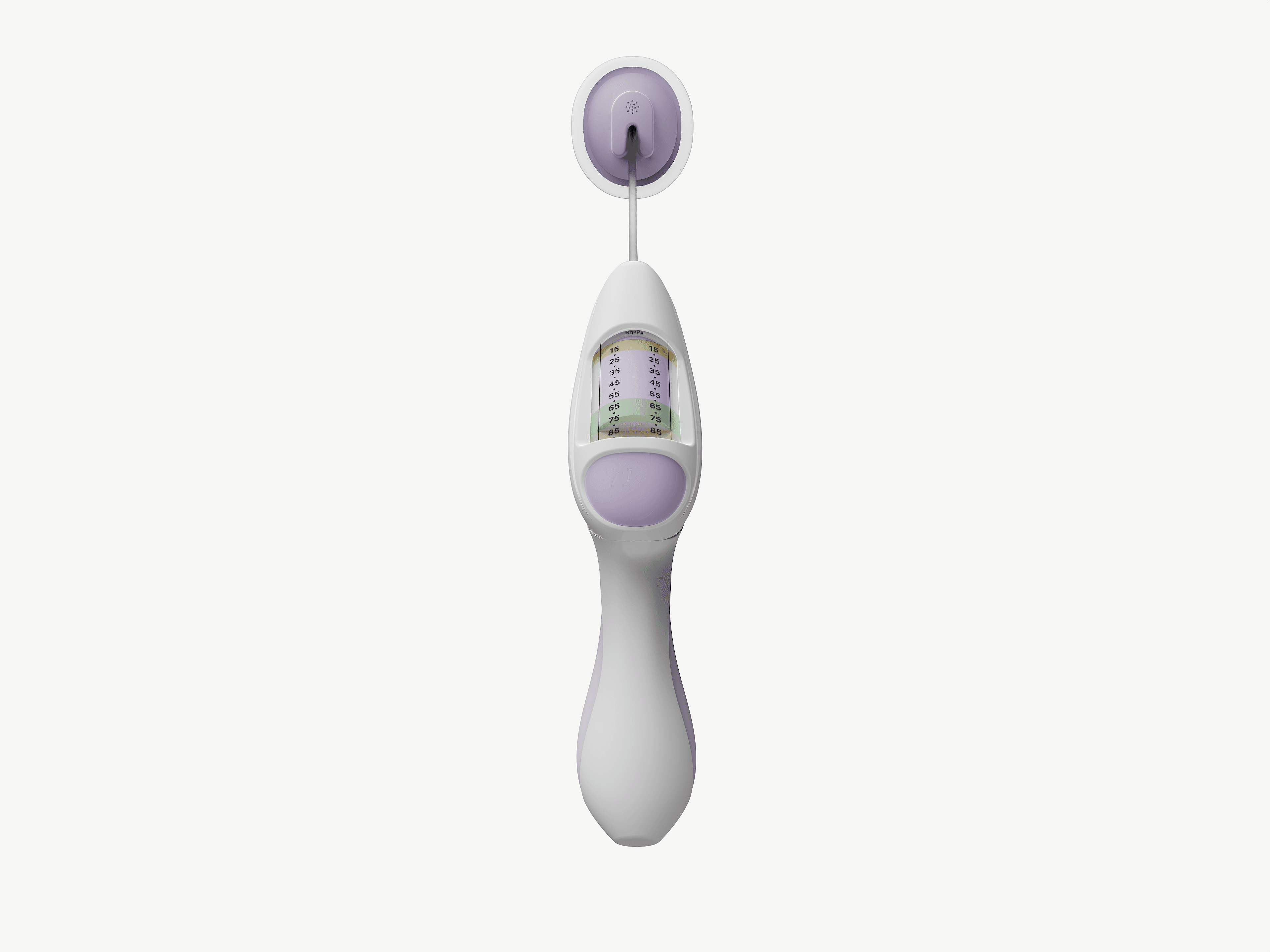

Clear Pressure Feedback
A gauge visible from wider angles with color-coded indicator for fine-grained control.
04 Problem
Intimidating Appearance
Rigid, mechanistic appearances adds anxiety for the mother and increases risk for CB-PTSD.
Solution
A Calming Visual Design
Neutral colors and smooth lines make the form softer and less intimidating for mothers.
05 Problem
Excessive waste
Single-use designs produce unnecessary medical waste and increase hospital costs.
Solution
Sustainable construction
A two-part design solution with reusable handles and replaceable cups/tubes.

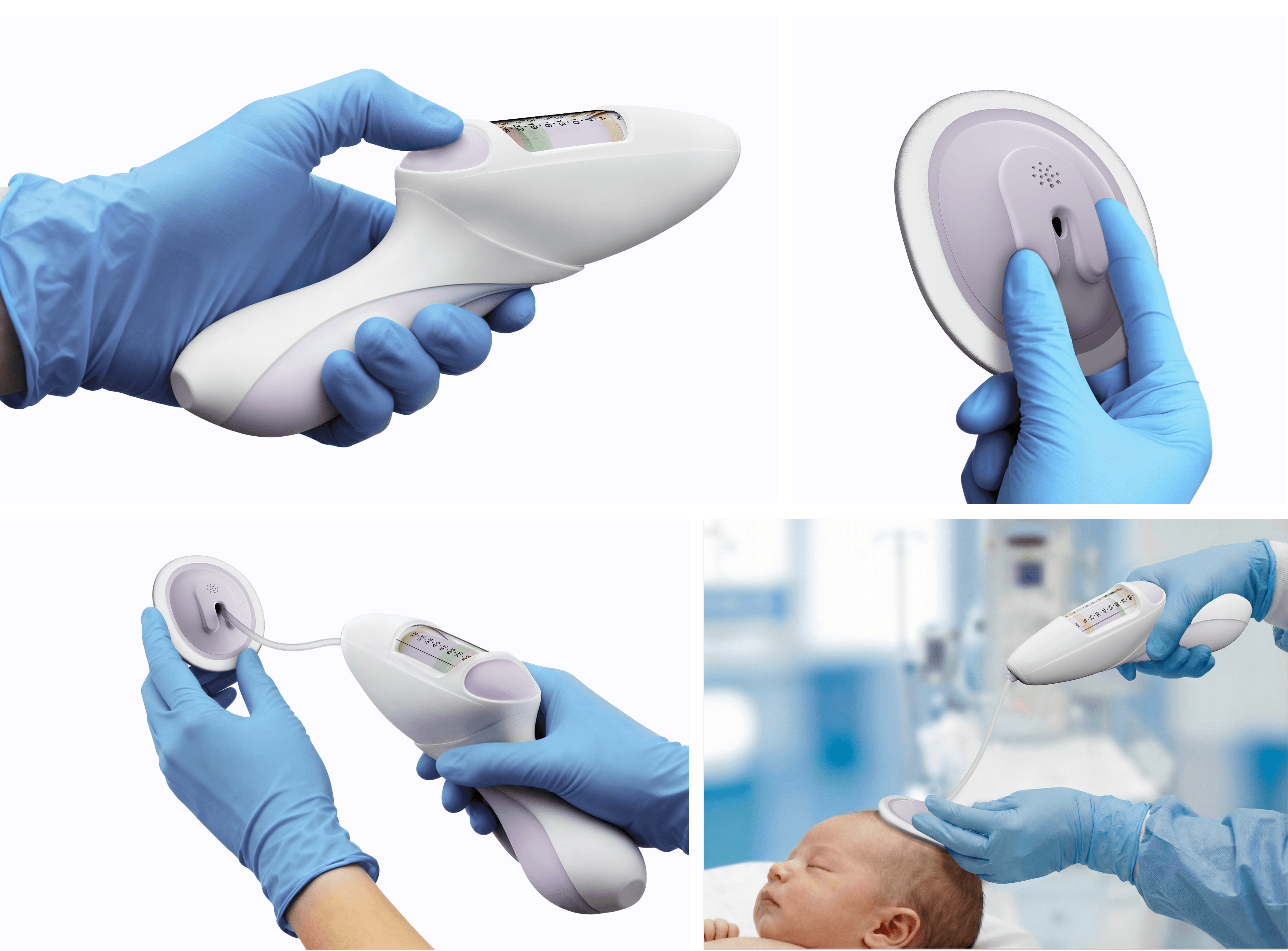

PRODUCT USAGE
SCENARIO

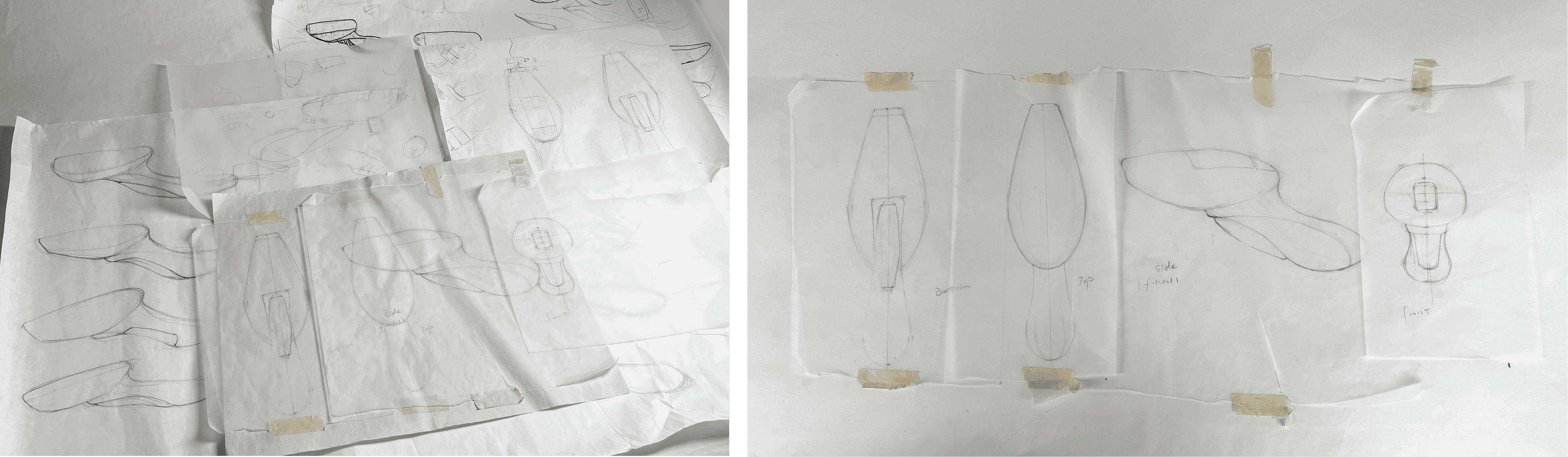

SKETCHES

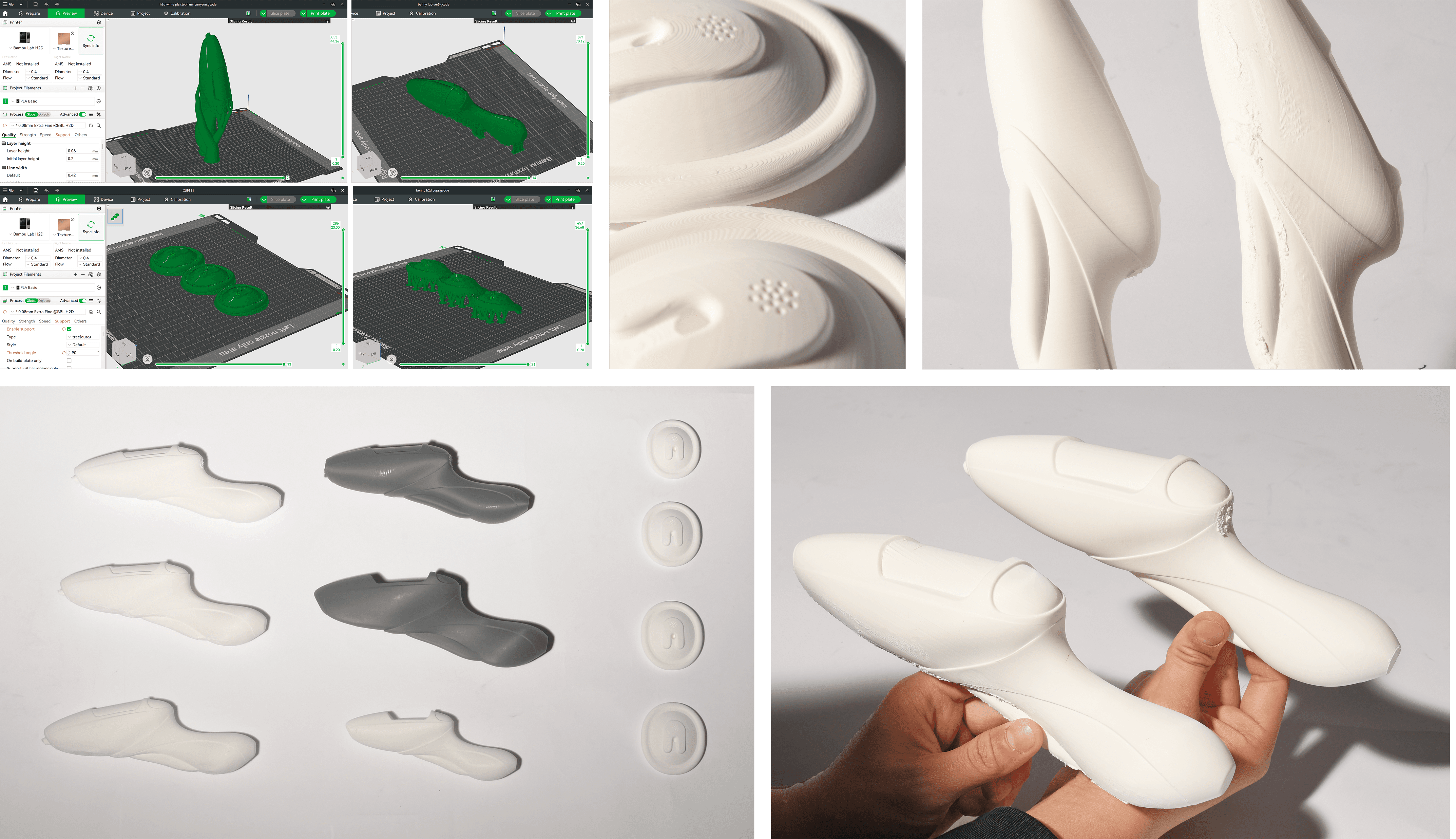

3D PRINTING

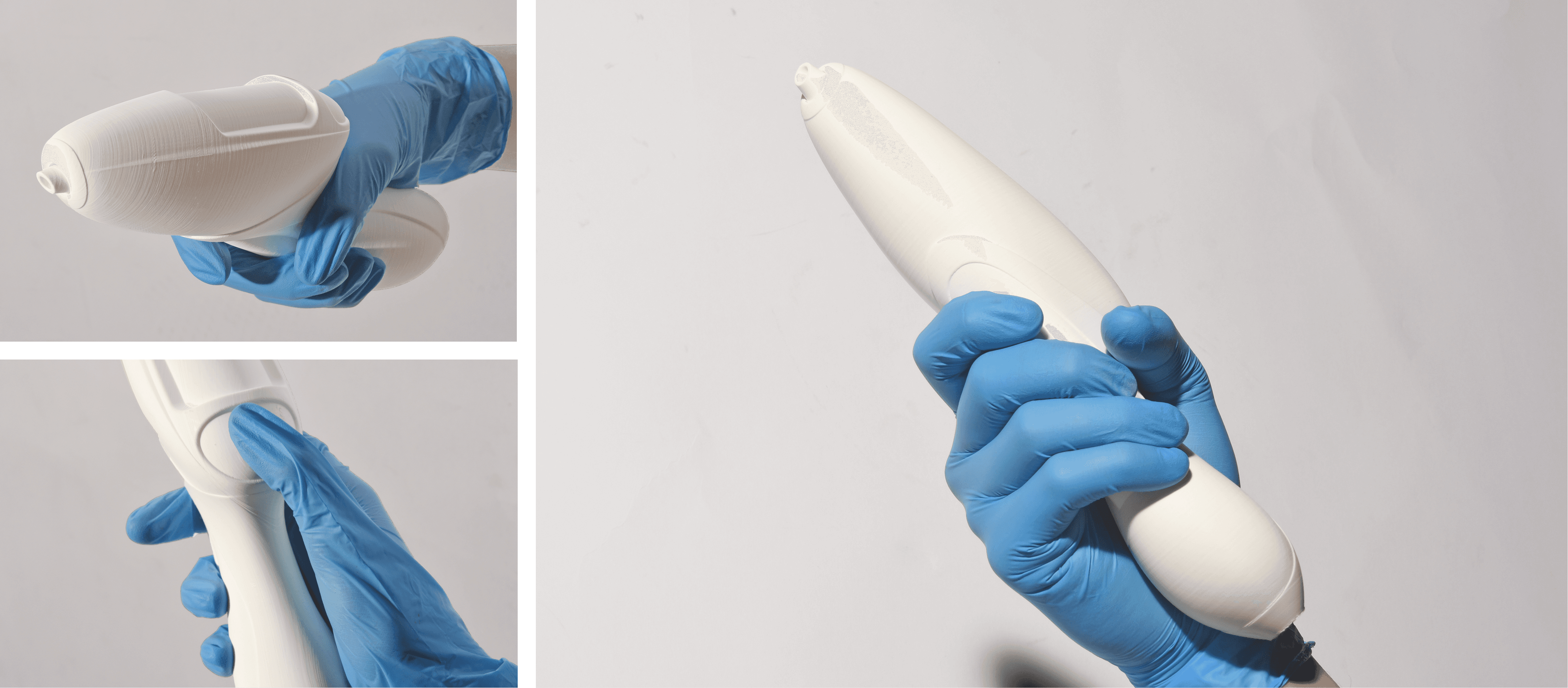

PHYSICAL MODEL SHOT
